Oscilloscope Simulator for Virtual Training

Odoo - Sample 1 for three columns

Virtual Training

Virtual training is the key to extend the contact time for students to expensive lab equipment. Virtualization becomes even more important in situations with limited access to laboratories and low budget.

Odoo - Sample 1 for three columns

Like a Real Oscilloscope

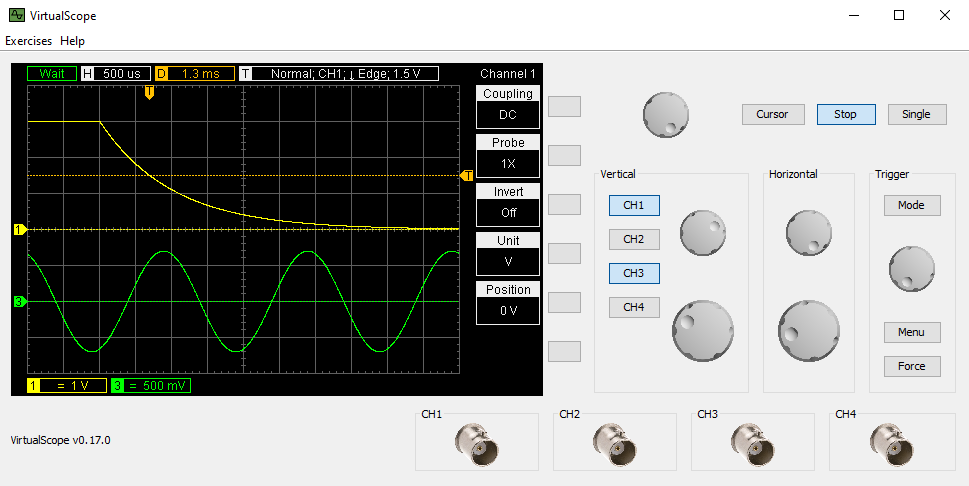

VirtualScope looks like, feels like, and works like a real device. Starting from the user interface down to the implemented algorithms VirtualScope is designed as close as possible to a real device. This leads to typical behaviour, that so far could only be experienced with real devices.

Odoo - Sample 1 for three columns

Exercises

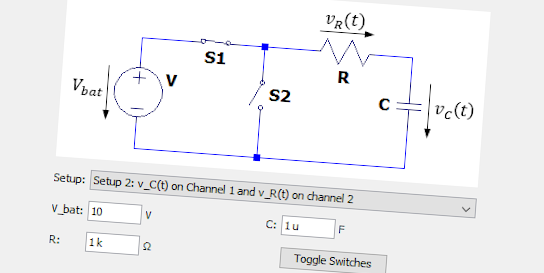

VirtualScope includes exercises to discover and learn basic scope functionality by analysing randomly generated periodical signals. Predefined experiements allow parameter change and direct visualization in the scope.

Inspired and successfully tested in lectures at Aalen University - a great place to be.
